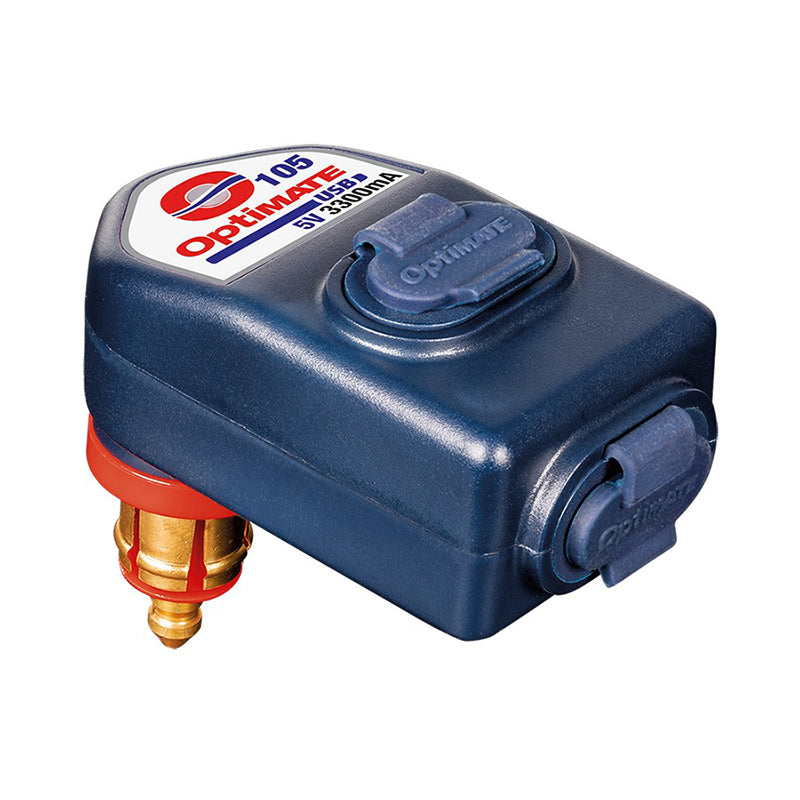

OptiMate O-105 3300mA Dual USB Weatherproof DIN Charger

SKU: 4-O-105
$68.00


1 in stock

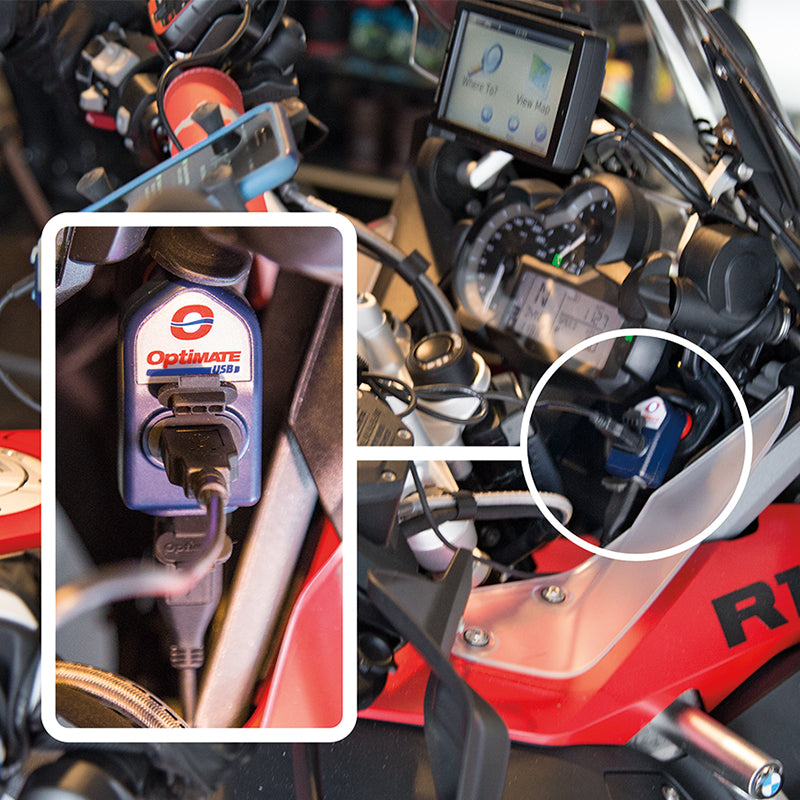

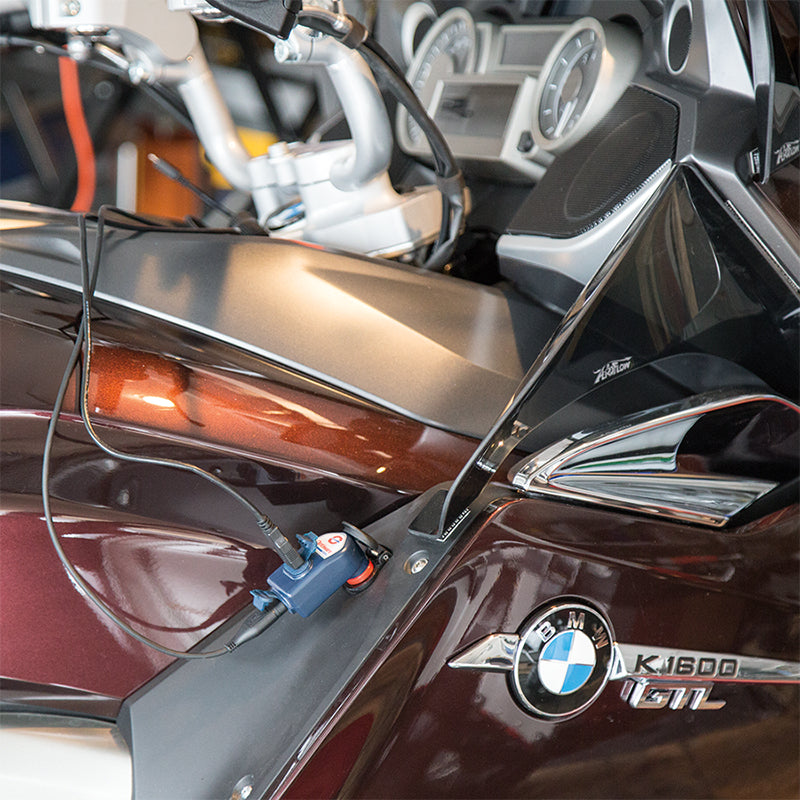

The OptiMate O-105 is a 3300mA, dual USB charger, with 90° elbow DIN plug connector that fits BMW, Triumph, Ducati and other motorcycles fitted with the popular DIN/Hella/Merit socket so you can fast charge two of your mobile devices at the same time.

Charge 2 x USB devices with up to 3300mA current available to share. The charge current adapts to each connected device for safe recharging.

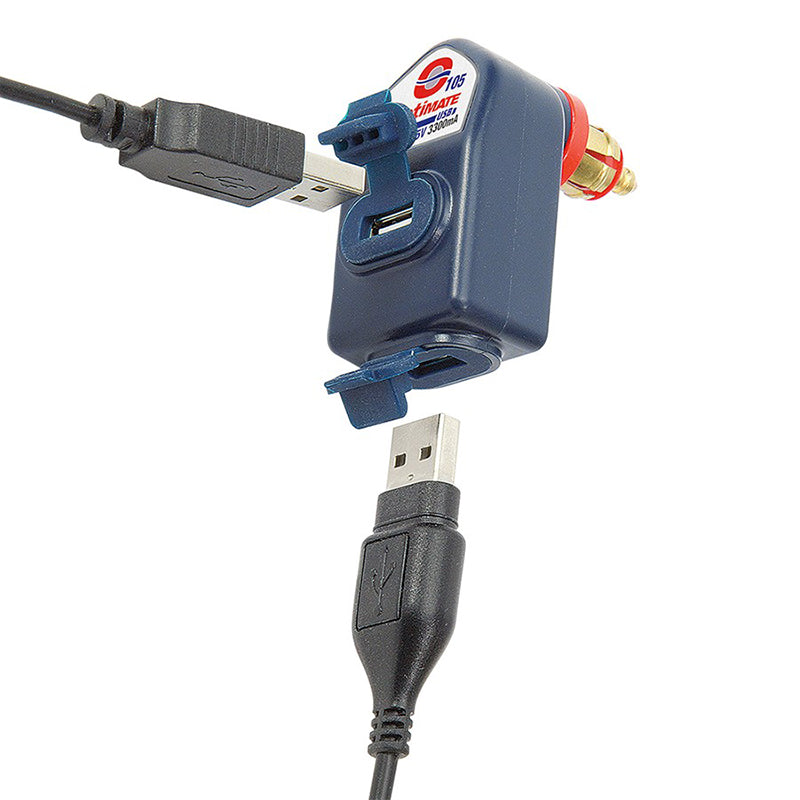

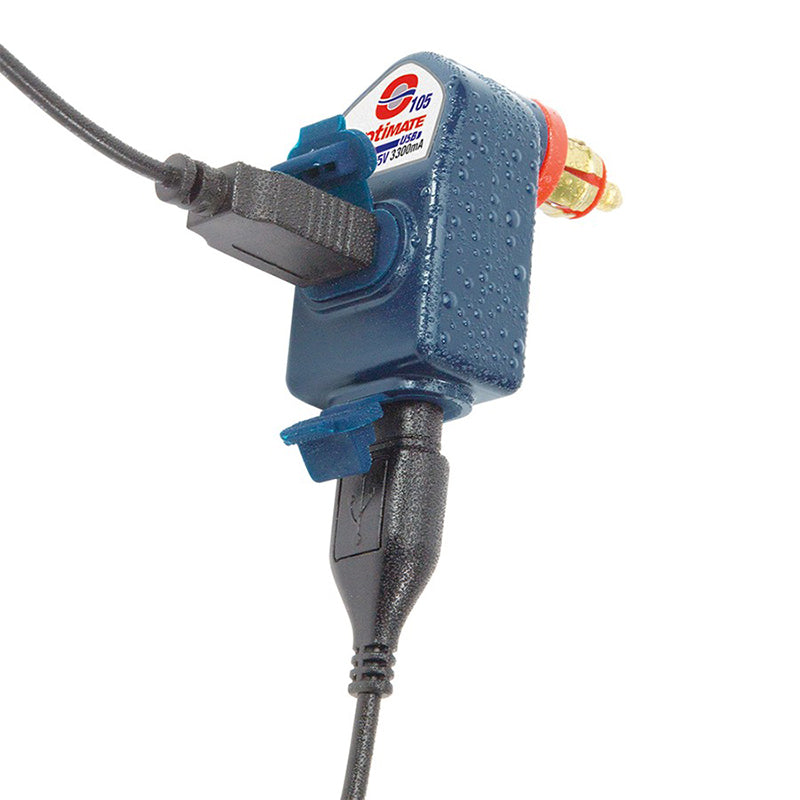

The USB sockets have a rubber seal to provide a weatherproof connection against an inserted USB cable for worry free phone, camera or GPS charging in any weather. The rubber caps protect the USB ports when they are not in use.

Built in protection turns off USB charging & prevents your parked motorcycle’s LFP (LiFePO4) or AGM (Pb) battery from draining. The charger will AUTO off 1 hour after the engine is stopped or if the battery voltage drops below 12.4V. It turns back on if the vehicle battery voltage increases above 13.3V.

The charger includes short-circuit, overheat, over-voltage protection and a ‘start ready’ LED indicator to monitor and display the parked vehicle’s battery status.

CHARGE CONNECTOR (INPUT): 90° DIN (Ø12mm)
POWER (INPUT): Vehicle 12V system with 12V lead-acid or 12.8V lithium battery.
CHARGE CONNECTOR (OUTPUT): 2x USB (located directly on the charger)
POWER (OUTPUT): 3300mA @5V
OPERATION: fully automatic

Operation (Voltage):
USB ON - 13.3V to 18V – unlimited USB output, USB LED on. Delivers USB power when vehicle engine is charging battery.
USB 1 HOUR - 12.4V to 13.3V – 1 hour USB output, USB LED on. Go to standby mode after 1 hour or voltage < 12.4V.
STANDBY MODE – Monitoring voltage, turns back on if vehicle battery voltage increases above 13.3V.
OFF ≤ 9V
